Description

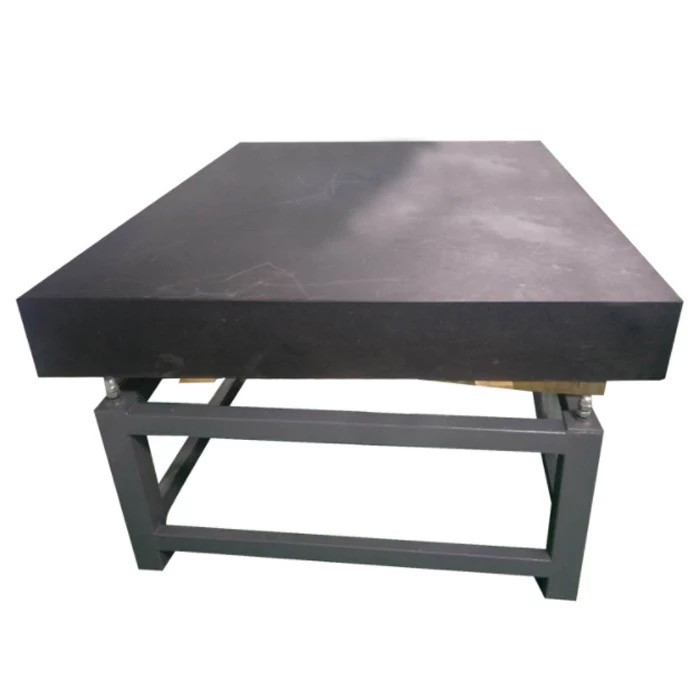

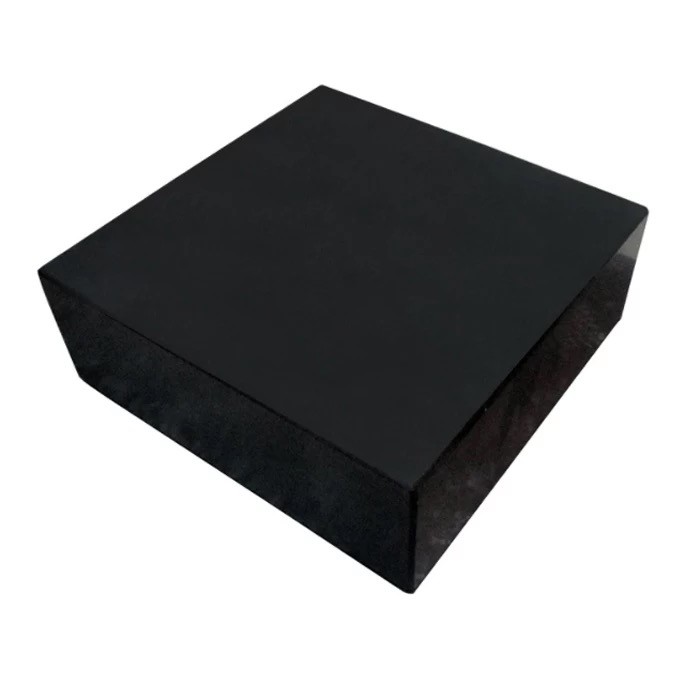

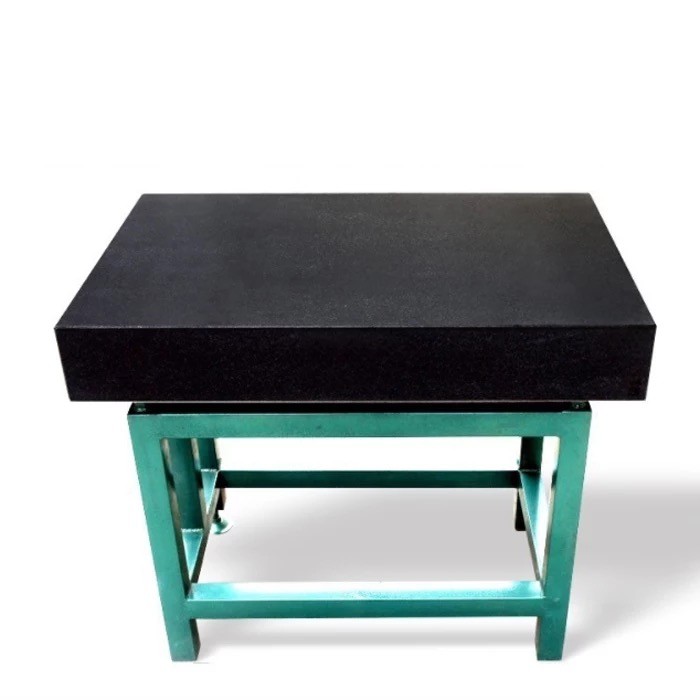

Precise Black Granite Surface Plates
The hardness and stability allow accuracies within millionths of an inch. Along with the high accuracies, granite is rust-proof, non-magnetic, abrasive resistant, non wedging, wrap-resistant and easily cleaned. The granite used for surface plates has an excellent distribution of hard quartz which provides a smooth, long-wearing working surface.
Granite surface plates meet or exceed Federal Specifications GGG-P463. Final inspection and calibration of every surface plate is accomplished by use of the Auto-Collimeter
Repeatability:
- Grade "B" Toolroom ± 100 Millionths
- Grade "A" Inspection ± 50 Millionths
* NOTE: Specify when ordering "Granite Stands", "O" Ledge or 2-Ledge. *
Granite surface plate Specification:
|
Specification |
Weight (kgs) |
Precision Grade (μm) |
||
|
00 |
0 |
1 |
||
|
800 × 500 × 130 |
156 |
4 |
8 |
16 |
|
1000 × 630 × 130 |
284 |
4.5 |
9 |
18 |
|
1000 × 750 × 150 |
338 |
5 |
9 |
18 |
|
1000 × 1000 × 150 |
450 |
5 |
10 |
20 |
|
1600 × 1000 × 200 |
963 |
6 |
12 |
24 |
|
2000 × 1000 × 200 |
1200 |
6.5 |
13 |
26 |
|
1600 × 1600 × 300 |
2312 |
6.5 |
13 |
26 |
|
2000 × 1600 × 300 |
2890 |
7 |
14 |
28 |
|
2500 × 1600 × 300 |
3612 |
8 |
16 |
32 |
|
3000 × 2000 × 500 |
9030 |
9 |
18 |
36 |
|
4000 × 2000 × 500 |
12040 |
11 |
22 |
44 |
